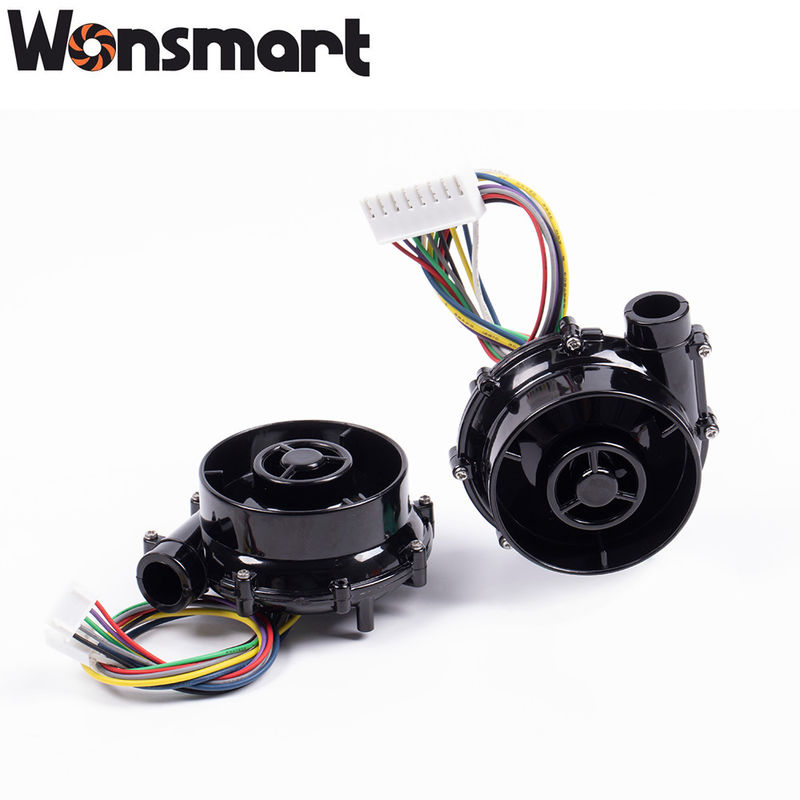

Three Phase Brushless 12v Dc Centrifugal Blower 18W-54W High Performance
Product Introduction:
| Part No |
WS7040-12-X200N |
| Vlotage |
12VDC |
| At Max airflow |
| Speed |
35,000rpm |
| Current |
4.5A |
| Air flow |
25m3/h(14CFM) |
| Noise |
73dba |
| At Max air pressure |
| Speed |
43,000rpm |
| Current |
1.5A |
| Air Pressure |
6Kpa |
| Noise |
70dba |
| Block |
50dba |
Blower Parameters
Drawing:
| WS7040-12-X200 blower can reach maximum 25m3/h airflow at 0 kpa pressure and maximum 6kpa static pressure.It has maximum output air power when this blower run at 6kPa resistance if we set 100% PWM, It has maximum efficiency when this blower run at 0kPa resistance if we set 100% PWM.Other load point performance refer to below P-Q curve: |
|
Company Profile
What Is Centrifugal Fan?
A centrifugal fan is a mechanical device for moving air or other gases in a direction at an angle to the incoming fluid. Centrifugal fans often contain a ducted housing to direct outgoing air in a specific direction or across a heat sink; such a fan is also called a blower, blower fan, biscuit blower, or squirrel-cage fan (because it looks like a hamster wheel). These fans increase the speed and volume of an air stream with the rotating impellers.
FAQ:
Q: May I use this blower for Medical device?
A: Yes, this is one blower of our company which can be used on Cpap and ventilator.
Q: What is the maxmum air pressure?
A: As it shown in the drawing, the maxmum air pressure is 6 Kpa.
Q:Are you a trading company or a manufacturer?
A: We are a manufacturer.
Q:When can I get the quotation?
A: We usually quote within 24 hours after we get your inquiry.lf you are urgent to get the price, please send the messageon trade management or call us directly.
Q:Can you make a motor with custom specifications?
A: Yes, actually that is what we do most of the time.
Q:What is the MOQ ?
A:1~10 pcs for sample order, 10-50 pcs for trial order,100pcs for bulk order.
