Ce RoHS Certified 24Vdc Small Blower Fan For Inflatables High Efficiency

Ce RoHS Certified 24Vdc Small Blower Fan For Inflatables High Efficiency

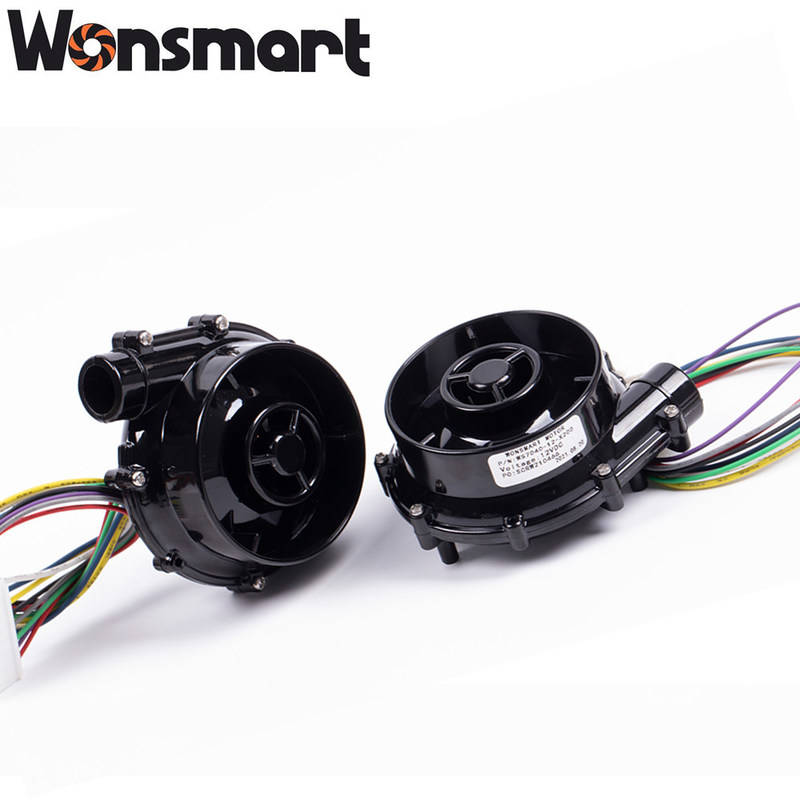

60mm diameter, 7kpa pressure, 24 Vdc small centrifugal blower
Inflatable equipment blower.

Suitable for air cushion machines/CPAP machines/fuel cells/medical equipment.

Blower features:

Drawing:

Blower Performance:

The WS7040-24-V200 fan can achieve a maximum airflow of 25m3/h at 0kpa pressure and 6.8kpa static pressure. If we set 100% PWM, when the fan operates at a resistance of 3kPa, it has the maximum output air power. If we set 100% PWM, the blower has maximum efficiency when operating at a resistance of 6.5kPa. The performance of other load points can refer to the following P-Q curve:

Matching drive:

Applications:

the WS7040-24-V200 is an excellent motor for small inflatable blowers. Its impressive performance specifications, low noise level, low current draw, and durability make it ideal for inflating small items like pool floats, air mattresses, and other inflatables. So if you're looking for a reliable and efficient motor for your small inflatable blower, the WS7040-24-V200 is the perfect choice.

How to use the blower correctly:

This blower can run at CCW direction only.Reverse the impeller running direction can not change the air direction.

Filter onto the inlet to protect the blower from dust and water.

Keep the environmental temperature as low as possible to make the blower lifetime longer.

FAQ:

Q:Customer: May I use this blower for Medical device?

A: Yes, this is one blower of our company which can be used on Cpap and ventilator.

Q: What’s is the maxmum air pressure?

A: As it shown in the drawing, the maxmum air pressure is 6.5 Kpa.

A centrifugal fan utilizes the centrifugal force provided by the rotation of the impeller to increase the kinetic energy of air/gas. When the impeller rotates, gas particles near the impeller detach from the impeller and enter the fan casing. Therefore, due to the system resistance provided by the casing and pipeline, the kinetic energy of the gas is measured as pressure. Then, the gas is guided to the outlet through the outlet pipeline. After the gas is sprayed out, the gas pressure in the middle area of the impeller decreases. The influx of gas from the impeller hole normalizes it. This cycle is repeated, so the gas can be continuously transferred.
